scissor dock lift

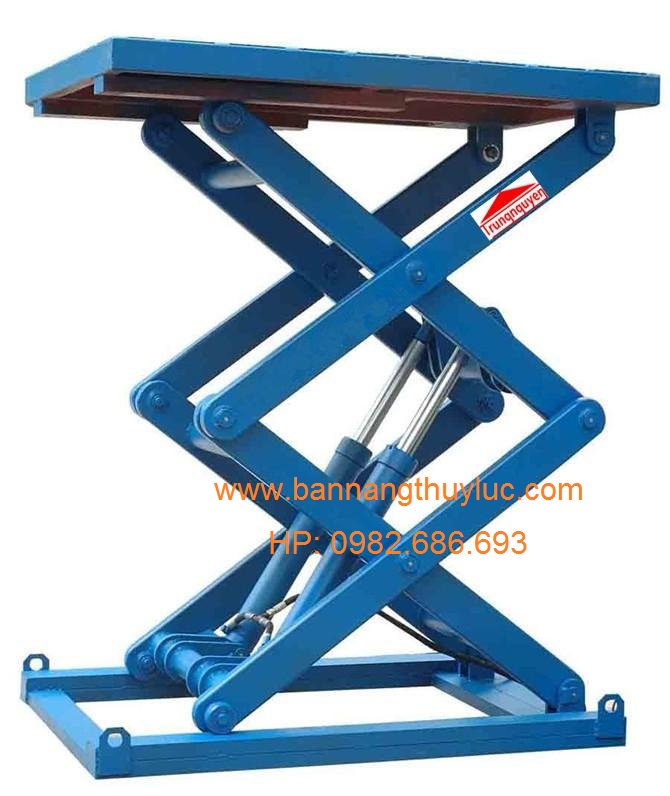

High Travel Vertical Lift That Conserves Space

Low collapsed heights and small platform sizes make the Q Lift extremely compact. This is a perfect solution for environments where utilizing minimum amount of floor space is necessary. Common applications for the Q Lift include raising material and tools to high work positions. Our standard models range from 49 to 74 inches of travel with capacities up to 5,000 lbs.

+84 (0)982.686.693

 Low collapsed heights and small platform sizes make the Q Lift extremely compact.  This is a perfect solution for environments where utilizing minimum amount of floor space is necessary. Common applications for the Q Lift include raising material and tools to high work positions. Our standard models range from 49 to 74 inches of travel with capacities up to 5,000 lbs.

Travel
74 in
Capacity
3500 lbs
Height
7 in (lowered) - 81 in (raised)
Base Frame Width
36 in
Base Frame Length
56 in
Platform Width
36 in - 48 in
Platform Length
56 in - 72 in
Max End Load
2000 lbs
Max Side Load
2000 lbs
Raising Time
44 secs
Lowering Time
44 secs
Power Unit
1.5HP
Power Unit Location
Internal
No. of Cylinders
3



Shipping Weight
1240 lbs











 Low collapsed heights and small platform sizes make the Q Lift extremely compact.  This is a perfect solution for environments where utilizing minimum amount of floor space is necessary. Common applications for the Q Lift include raising material and tools to high work positions. Our standard models range from 49 to 74 inches of travel with capacities up to 5,000 lbs.

Travel
74 in
Capacity
3500 lbs
Height
7 in (lowered) - 81 in (raised)
Base Frame Width
36 in
Base Frame Length
56 in
Platform Width
36 in - 48 in
Platform Length
56 in - 72 in
Max End Load
2000 lbs
Max Side Load
2000 lbs
Raising Time
44 secs
Lowering Time
44 secs
Power Unit
1.5HP
Power Unit Location
Internal
No. of Cylinders
3
Shipping Weight
1240 lbs
